PDSW'20 Recap

This year was the first all-virtual Parallel Data Systems Workshop, and despite the challenging constraints imposed by the pandemic, it was remarkably engaging.  The program itself was contracted relative to past years and only had time for three Work-In-Progress (WIP) presentations, so it was a little difficult to pluck out high-level research trends and themes.  However, this year's program did seem more pragmatic, with talks covering very practical topics that had clear connection to production storage and I/O. The program also focused heavily on the HPC side of the community, and the keynote address was perhaps the only talk that focused squarely on the data-intensive data analysis side of what used to be PDSW-DISCS.  Whether this is the result of PSDW's return to the short paper format this year, shifting priorities from funding agencies, or some knock-on effect of the pandemic is impossible to say.

Although there weren't any strong themes that jumped out at me, last year's theme of using AI to optimize I/O performance was much more muted this year.  Eliakin del Rosario presented a paper describing a clustering and visual analysis tool he developed that underpins a study applying machine learning to develop an I/O performance model presented in the main SC technical program, but there was no work in the direction of applying AI to directly optimize I/O.  Does this mean that these ideas have climbed over the hype curve and are now being distilled down into useful techniques that may appear in production technologies in the coming years?  Or was the promise of AI to accelerate I/O just a flash in the pan?

In the absence of common themes to frame my recap, what follows are just my notes and thoughts about some of the talks and presentations that left an impression.  I wasn't able to attend the WIP session or cocktail hour due to non-SC work obligations (it's harder to signal to coworkers that you're "on travel to a conference" when you're stuck at home just like any other workday) so I undoubtedly missed things, but all slides and papers are available on the PDSW website, and anyone with an SC workshop pass can re-watch the recorded proceedings on the SC20 digital platform.

Keynote - Nitin Agrawal

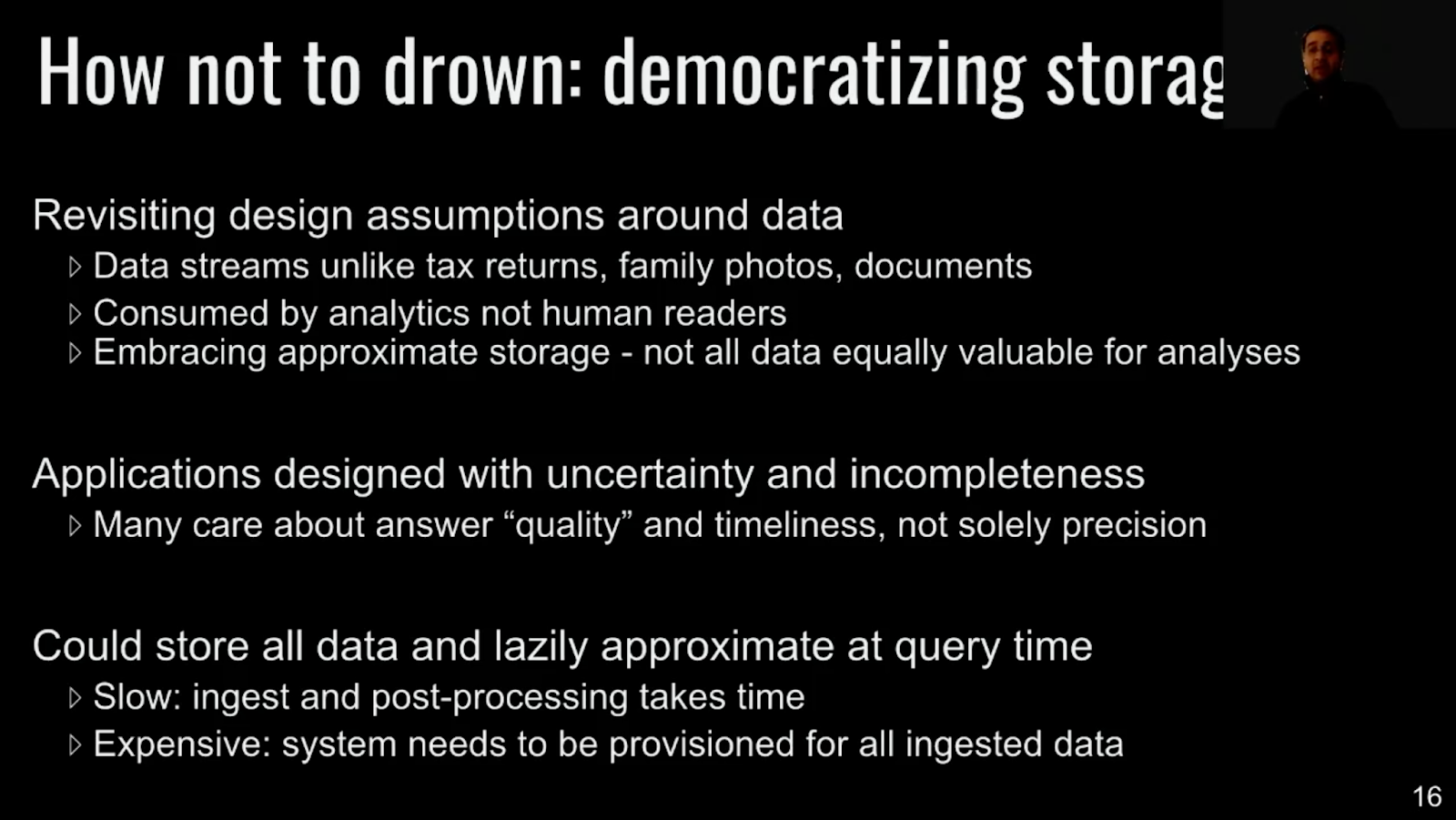

This year’s keynote by Nitin Agrawal was a long-form research presentation on SummaryStore, an “approximate storage system” that doesn't store the data you put in it so much as it stores the data you will probably want to get back out of it at a later date.  This notion of a storage system that doesn't actually store things sounds like an affront at a glance, but when contextualized properly, it makes quite a lot of sense:

There are cases where the data being stored doesn't have high value.  For example, data may become less valuable as it ages, or data may only be used to produce very rough guesses (e.g., garbage out) so inputting rough data (garbage in) is acceptable.  In these cases, the data may not be worth the cost of the media on which it is being stored, or its access latency may be more important than its precision; these are the cases where an approximate storage system may make sense.

The specific case presented by Dr. Agrawal, SummaryStore, strongly resembled a time series database to feed a recommendation engine that naturally weighs recent data more heavily than older data.  The high-level concept seemed a lot like existing time series telemetry storage systems where high-frequency time series data are successively aggregated as they age so that new data may be sampled every few seconds while old data may be sampled once an hour.

For example, LMT and mmperfmon are time series data collection tools for measuring the load on Lustre and Spectrum Scale file systems, respectively.  The most common questions I ask of these tools are things like

  • What was the sum of all write bytes between January 2018 and January 2019?
  • How many IOPS was the file system serving between 5:05 and 5:10 this morning?
By comparison, it's very rare to ask "How many IOPS was the file system serving between 5:05 and 5:10 two years ago?"  It follows that the storage system underneath LMT and mmperfmon can be "approximate" to save space and/or improve query performance.  Dr. Agrawal's presentation included this pictorial representation of this:

Because these approximate storage systems are specifically designed with an anticipated set of queries in mind, much of Agrawal's presentation really spoke to implementation-specific challenges he faced while implementing SummaryStore--things like how SummaryStore augmented bloom filter buckets with additional metadata to allow approximations of sub-bucket ranges to be calculated.  More of the specifics can be found in the presentation slides and references therein.

This notion of approximate storage is not new; it is preceded by years of research into semantic file systems, where the way you store data is driven by the way in which you intend to access the data.  By definition, these are data management systems that are tailor-made for specific, high-duty cycle I/O workloads such as web service backends.

What I took away from this presentation is that semantic file systems (and approximate storage systems by extension) aren't intrinsically difficult to build for these specific workloads.  Rather, making such a system sufficiently generic in practice to be useful beyond the scope of such a narrow workload is where the real challenge lies.  Tying this back to the world of HPC, it's hard to see where an approximate storage system could be useful in most HPC facilities since their typical workloads are so diverse.  However, two thoughts did occur to me:

  1. If the latency and capacity characteristics of an approximate storage system are so much better than generic file-based I/O when implemented on the same storage hardware (DRAM and flash drives), an approximate storage system could help solve problems that traditionally were limited by memory capacity.  DNA sequence pattern matching (think BLAST) or de novo assembly could feasibly be boosted by an approximate index.
  2. Since approximate storage systems are purpose-built for specific workloads, the only way they fit into a general-purpose HPC environment is using purpose-built composable data services.  Projects like Mochi or BespoKV provide the building blocks to craft and instantiate such purpose-built storage systems, and software-defined storage orchestration in the spirit of DataWarp or the Cambridge Data Accelerator would be needed to spin up an approximate storage service in conjunction with an application that would use it.

I'm a big believer in #2, but #1 would require a forcing function coming from the science community to justify the effort of adapting an application to use approximate storage.

Keeping It Real: Why HPC Data Services Don't Achieve I/O Microbenchmark Performance

Phil Carns (Argonne) presented a lovely paper full of practical gotchas and realities surrounding the idea of establishing a roofline performance model for I/O.  The goal is simple: measure the performance of each component in an I/O subsystem's data path (application, file system client, network, file system server, storage media), identify the bottleneck, and see how close you can get to hitting the theoretical maximum of that bottleneck:

The thesis of the paper was that even though this sounds simple, there's a lot more than meets the eye.  I won't recite the presentation (see the paper and slides--they're great), but I thought some of the more interesting findings included:

  1. There's a 40% performance difference between the standard OSU MPI bandwidth benchmark and what happens when you make the send buffer too large to fit into cache.  It turns out that actually writing data over the network from DRAM (as a real application would) is demonstrably slower than writing data from a tiny cacheable memory buffer.
  2. Binding MPI processes to cores is good for MPI latency but can be bad for I/O bandwidth.  Highly localized process placement is great if those processes talk to each other, but if they have to talk to something off-chip (like network adapters), the more spread out they are, the greater the path diversity and aggregate bandwidth they may have to get out of the chip.
  3. O_DIRECT bypasses page cache but not device cache, while O_SYNC does not bypass page cache  but flushes both page and device caches.  This causes O_DIRECT to reduce performance for smaller I/Os which would benefit from write-back caching when used by itself, but increase performance when used with O_SYNC since one less cache (the page cache) has to be synchronized on each write. Confusing and wild.  And also completely nonstandard since these are Linux-specific flags.

Towards On-Demand I/O Forwarding in HPC Platforms

Jean Luca Bez (UFRGS) presented a neat userspace I/O forwarding service, FORGE, that got me pretty excited since the field of I/O forwarding has been pretty stagnant since IOFSL came out ten years ago.

The high-level concept is simple: take the intelligence of collective I/O operations implemented in ROMIO and, instead of running them inside the same MPI application performing I/O, offload that functionality to discrete nodes:

This FORGE service is ephemeral in that it is spun up at the same time your MPI application is spun up and persists for the duration of the job.  However unlike traditional MPI-IO-based collectives, it runs on dedicated nodes, and it relies on a priori knowledge of the application's I/O pattern to decide what sorts of I/O reordering would benefit the application.

This is perhaps a bit wasteful since nodes are being held idle until I/O happens, but the promise of this idea is much larger.  Many large HPC systems have dedicated I/O forwarding nodes because they have to--for example, LNet routers or DVS servers exist in Cray-based HPC systems to do the network protocol conversion to allow InfiniBand-based Lustre and Spectrum Scale file systems to be mounted on Aries-based compute nodes.  There's no reason these same nodes couldn't also be used to run FORGE-like services on-demand to buffer and reorder I/Os in transit.  And if you stick some NVMe into these protocol conversion nodes, you suddenly have something that looks an awful lot like a transparent burst buffer akin to DDN Infinite Memory Engine.

Taking this a step further, this idea also further motivates having reconfigurable storage infrastructure within an HPC system; with a little bit of knowledge about your I/O workload, one could reconfigure the parallelism and compute power available along the I/O data path itself to optimally balance the limited resources of nodes and the performance benefit.  A couple examples:
  • Have a very IOPS-heavy, many-file workload?  Since these tend to be CPU-limited, it would make sense to allocate a lot of FORGE nodes to this job so that you have a lot of extra CPU capacity to receive these small transactions, aggregate them, and drive them out to the file system.
  • Have a bandwidth-heavy shared-file workload?  Driving bandwidth doesn't require a lot of FORGE nodes, and fewer nodes means fewer potential lock conflicts when accessing the shared file.
This intelligent I/O forwarding naturally maps to file system architectures that incorporate I/O forwarding and stateless components--like VAST--where more network and computational parallelism can be sloshed into a compute node's data path to deal with more complex or adversarial I/O patterns.

Fractional-Overlap Declustered Parity

Huan Ke (U Chicago) presented a paper that tried to bridge the gap between RAID implementations that use declustered parity, which has really fast rebuild but a huge failure domain, and traditional (clustered) parity which has very slow rebuilds but a very small failure domain.

The special sauce proposed by Ke is being judicious about how stripes are laid out across a declustered group.  Using Latin squares to map RAID blocks to physical drives, one can control how many unique stripes would be affected by a failure (termed the overlap fraction):

This is usually where I stop being able to keep up in these sorts of parity scheme talks; however, I quickly realized that this parity scheme relies on the same principle that engineers use to design cost-efficient parameter sweep experiments.  In fact, I made a webpage about this exact topic in the context of optimizing a hypothetical chemical vapor deposition experiment when I was an undergraduate in materials science, and it's really not as complicated as I thought.

What it boils down to is defining a set of experiments (or mappings between RAID blocks and drives) where you vary all the parameters (temperature, pressure etc--or which RAID block maps to which drive) but ensure that the same parameter value is never repeated twice (e.g., don't have two experiments with temperature held at 30C, or have two RAID layouts where block #2 is never placed on drive #3).  Orthogonal arrays (which are composed of Latin squares) provide an analytical method for coming up with these unique combinations.

In the engineering context, you essentially never repeat an experiment if you can infer the result of varying one parameter using a combination of other experiments.  In the parity placement scheme, you never use a block mapping if a combination of drive failures will break all your RAID stripes.  The neat idea behind what Ke presented is a method to vary this constraint so that you can find layout schemes that have any mix of blast radius (how many stripes are lost on an unrecoverable failure) against rebuild time.

NVIDIA GPUDirect Storage Support in HDF5

John Ravi presented his work implementing support for NVIDIA's brand new GPUDirect Storage (which allows data transfer between GPU memory and an NVMe device without ever touching host memory using peer-to-peer PCIe) in HDF5.  Much of the talk focused on the implementation details specific to HDF5, but he did present some performance results which I found quite interesting:

In the above diagram, "SEC2" refers to the default POSIX interface, "DIRECT" is POSIX using O_DIRECT, and "GDS" is GPUDirect Storage.  What surprised me here is that all of the performance benefits were expressed in terms of bandwidth, not latency--I naively would have guessed that not having to bounce through host DRAM would enable much higher IOPS.  These results made me internalize that the performance benefits of GDS lie in not having to gum up the limited bandwidth between the host CPU and host DRAM.  Instead, I/O can enjoy the bandwidth of HBM or GDDR to the extent that the NVMe buffers can serve and absorb data.  I would hazard that in the case of IOPS, the amount of control-plane traffic that has to be moderated by the host CPU undercuts the fast data-plane path enabled by GDS.  This is consistent with literature from DDN and VAST about their performance boosts from GDS.

Fingerprinting the Checker Policies of Parallel File Systems

The final PDSW talk that struck a chord was by Runzhou Han who presented a methodology for exercising parallel file systems' fsck tools using targeted fault injection.  He intentionally corrupted different parts of the data structures used by BeeGFS and Lustre to store metadata, then ran fsck to see how well those mistakes were caught.  I think the biggest intellectual contribution of the work was formalizing a taxonomy of different types of corruption events (junk data, zeros written, duplicate data, and out-of-sync data) and ways in which fsck does or does not cope with them:

The practical outcome of this work is that it identified a couple of data structures and corruption patterns that are particularly fragile on Lustre and BeeGFS.  Alarmingly, two cases triggered kernel panics in lfsck which led me to beg the question: why isn't simple fault injection like this part of the regular regression testing performed on Lustre?  As someone who's been adjacent to several major parallel file system outages that resulted from fsck not doing a good job, hardening the recovery process is a worthwhile investment since anyone who's having to fsck in the first place is already having a bad day.

That said, this paper seemed much more practical than foundational and it was unclear where this goes once the immediate issues discovered are addressed.  To that end, I could see why hardening fsck isn't getting a lot of research attention.
